| ブランド名: | KOMAI |
| モデル番号: | KM-FB005 |
| MOQ: | 1個 |
| 価格: | Negotiate |
| 支払い条件: | T/T、ウェスタンユニオン |
| 補給能力: | 月額5000 |

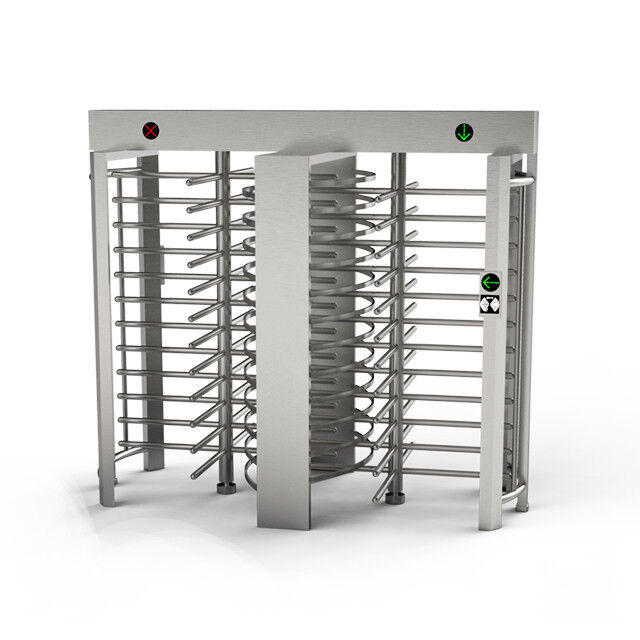

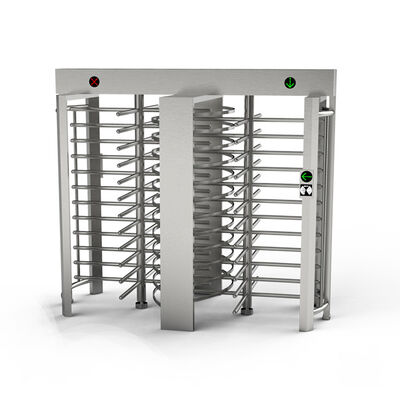

Full height turnstile Function:
Through the built-in small press disk on the main control board, the running state of the programmable device.
Unique two-way anti-inversion function
anti-scour function, when the opening signal is not received, the channel bar will be locked automatically.
the channel is automatically unlocked after the power is cut off, and the function of free rotation can meet the requirements of fire fighting, and the channel is locked and closed automatically after the power is turned on.
with automatic reset function, after opening the gate, when pedestrians do not pass within a specified period of time, the system will automatically cancel the pedestrian traffic authority, and the reset time is 1S~60S adjustable (the default time of the system is 10s).
Full height turnstile Technical Parameter:
| Power voltage | AC220 ±10%V/50 ±10%HZ | Open angle | 120°/90° |
| Communication mode | 232/485 TCP/TP | Pass speed | 30 person/minutes |
| Movement | Hydraulic movement | Structure | 304 stainless steel |
| Relative humidity | None-condensation | Open direction | Single and Double(optional) |
| Input signal | 12v DC level or Dry contact signal | Work environment | Outdoo(Canopy)and indoor |
| Working Current | ≤2000mA | Temperature | -10 ℃-- 50 ℃ |
| Working Noise | Below 65 decibels | Relative humidity | ≤90%, non-condensing |
